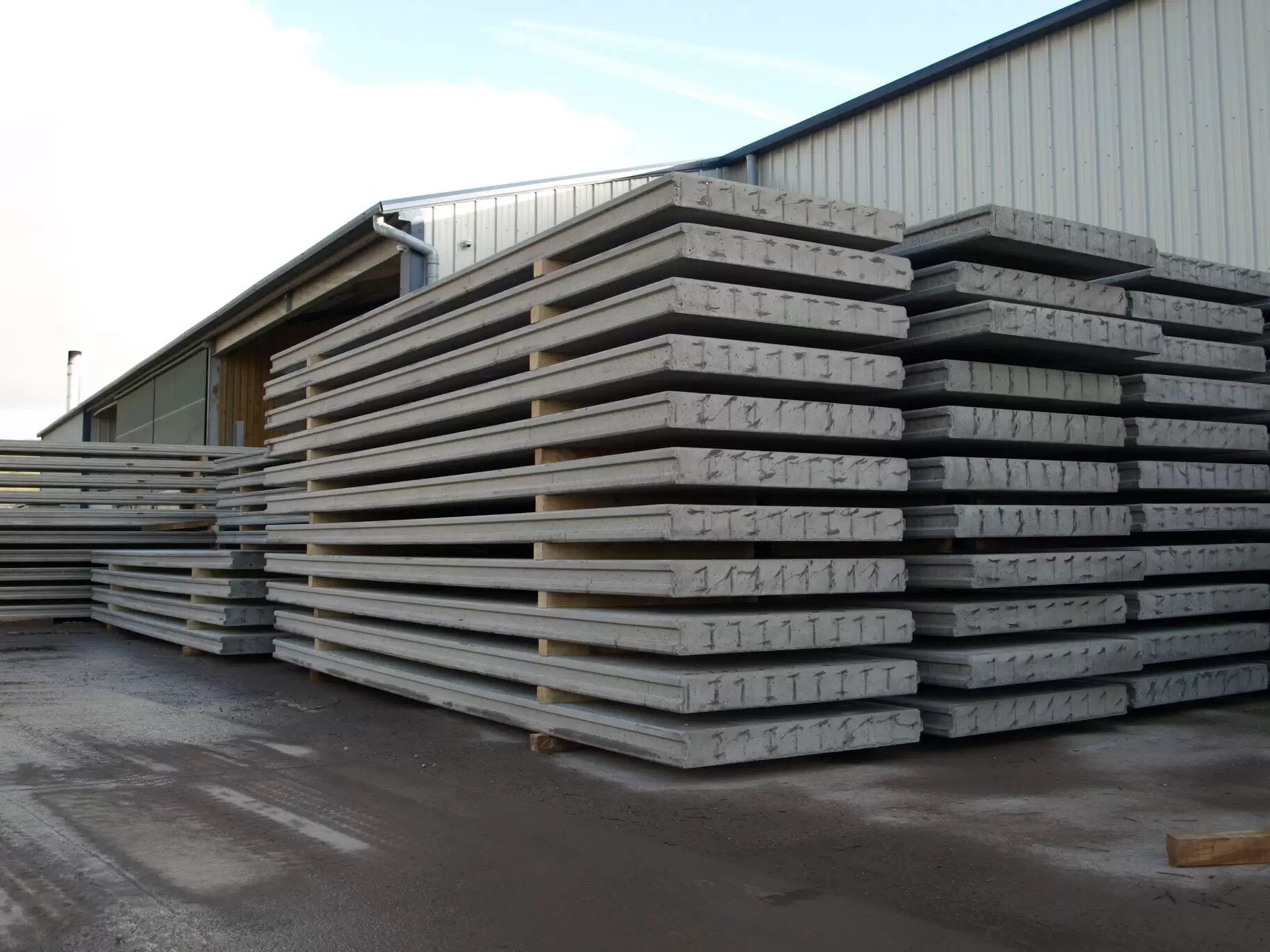

We are proud to present a range of structural pre-stressed and non-structural concrete wall panels from CWP.
Why choose a Concrete Wall Panel?

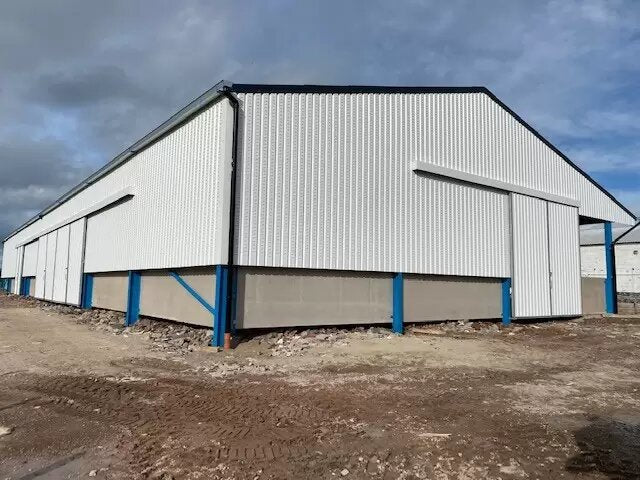

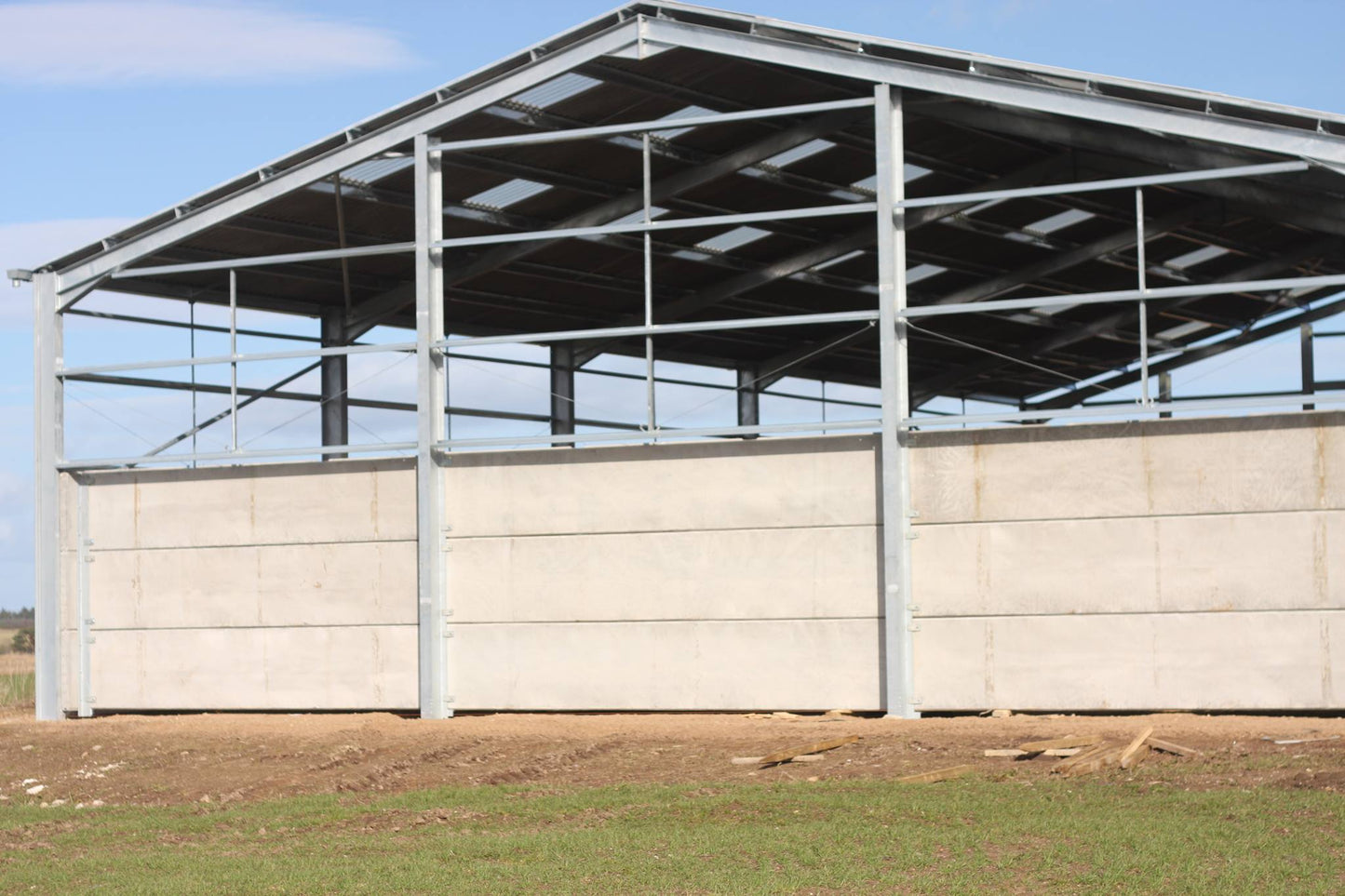

The panels provide a lighter and quicker alternative to a block wall for constructing your new buildings. Choosing the concrete panels reduces not only your costs but is more efficient and easier to install. All panels are of a solid constructed enabling gates, racks and cubicle frames to attached straight to the panels with rawl bolts as a permanent feature.
The panels are cast in the length that you require for your building and there are a variety of heights and thicknesses available.
Specifications available:

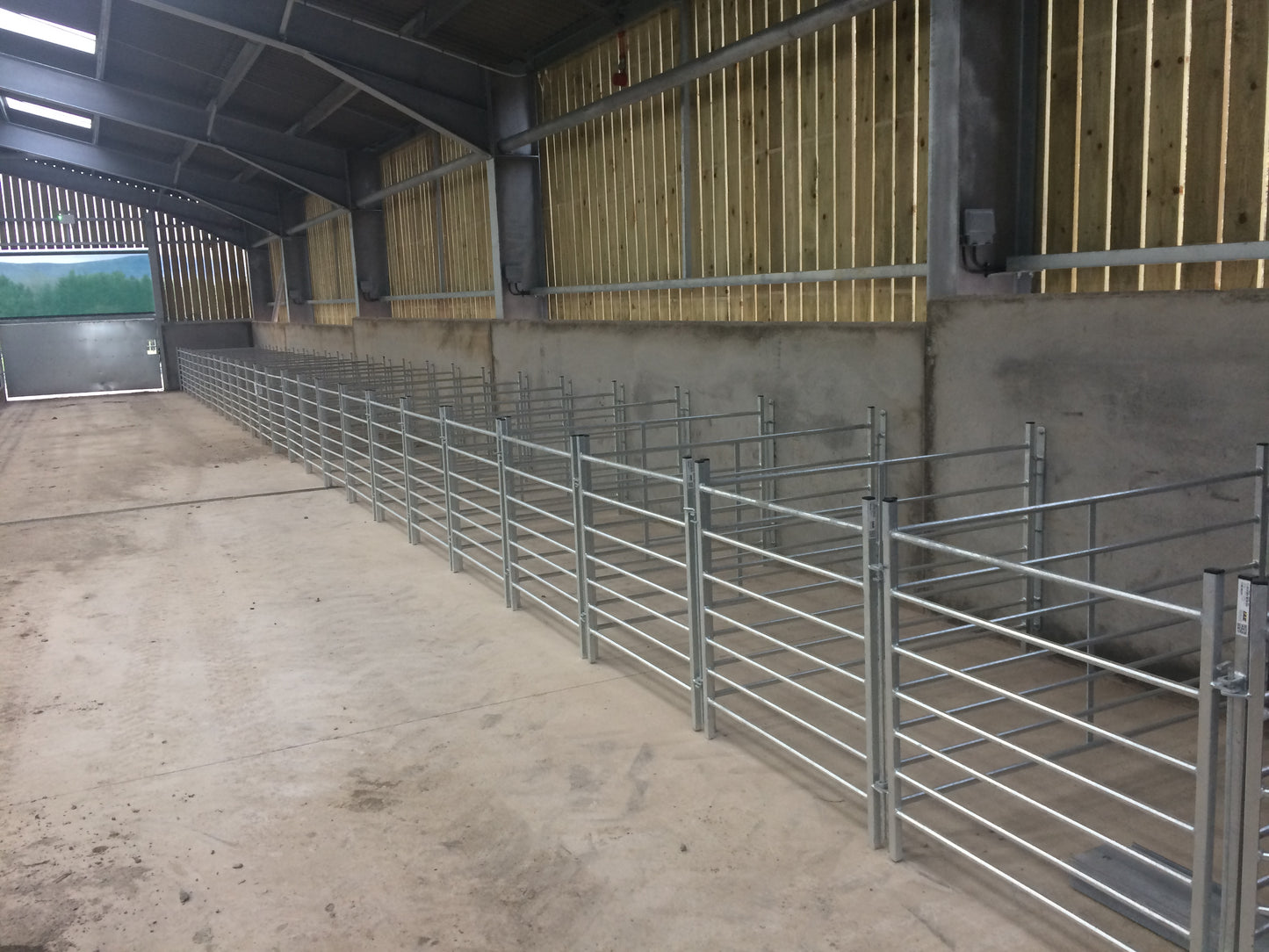

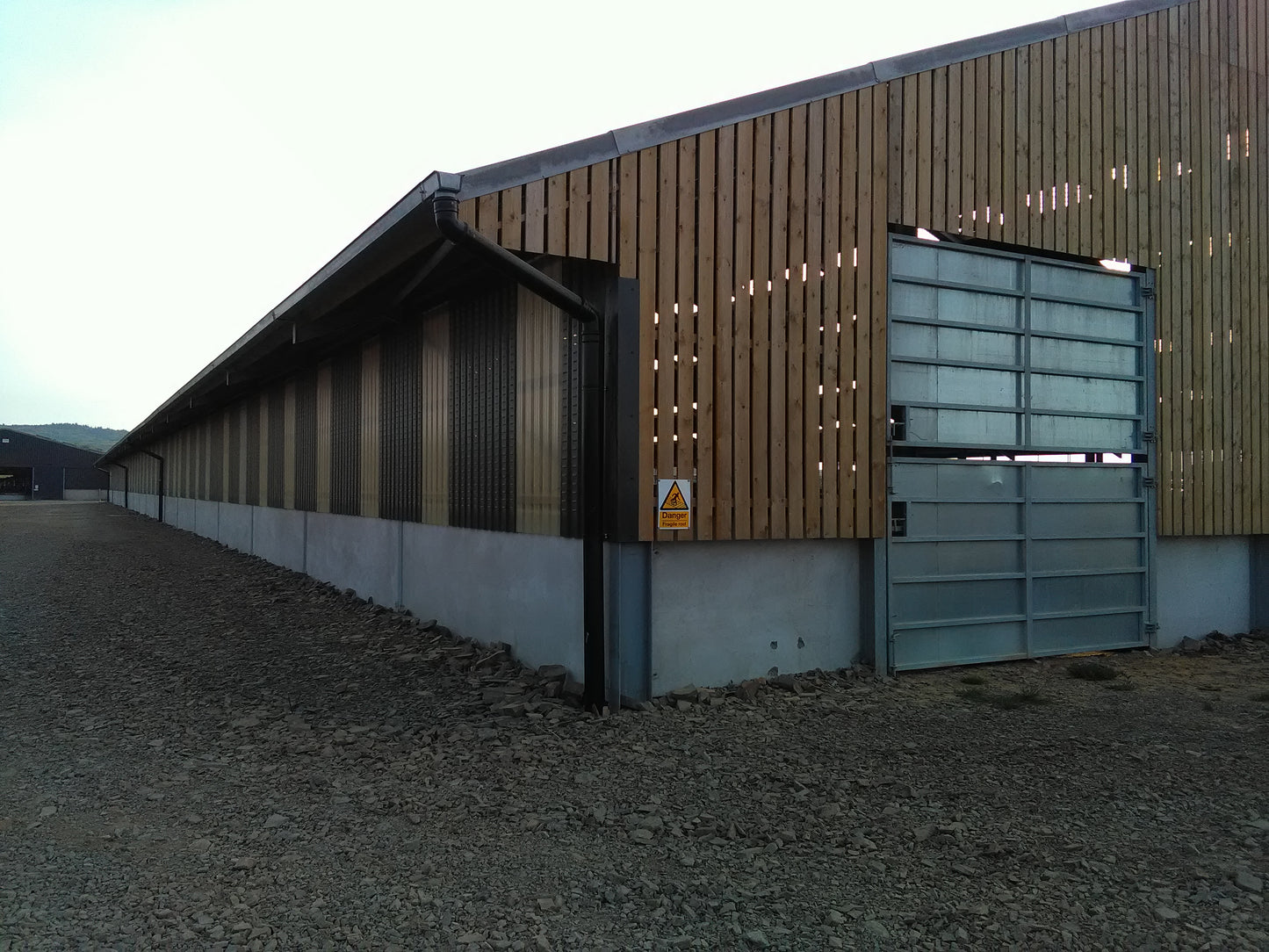

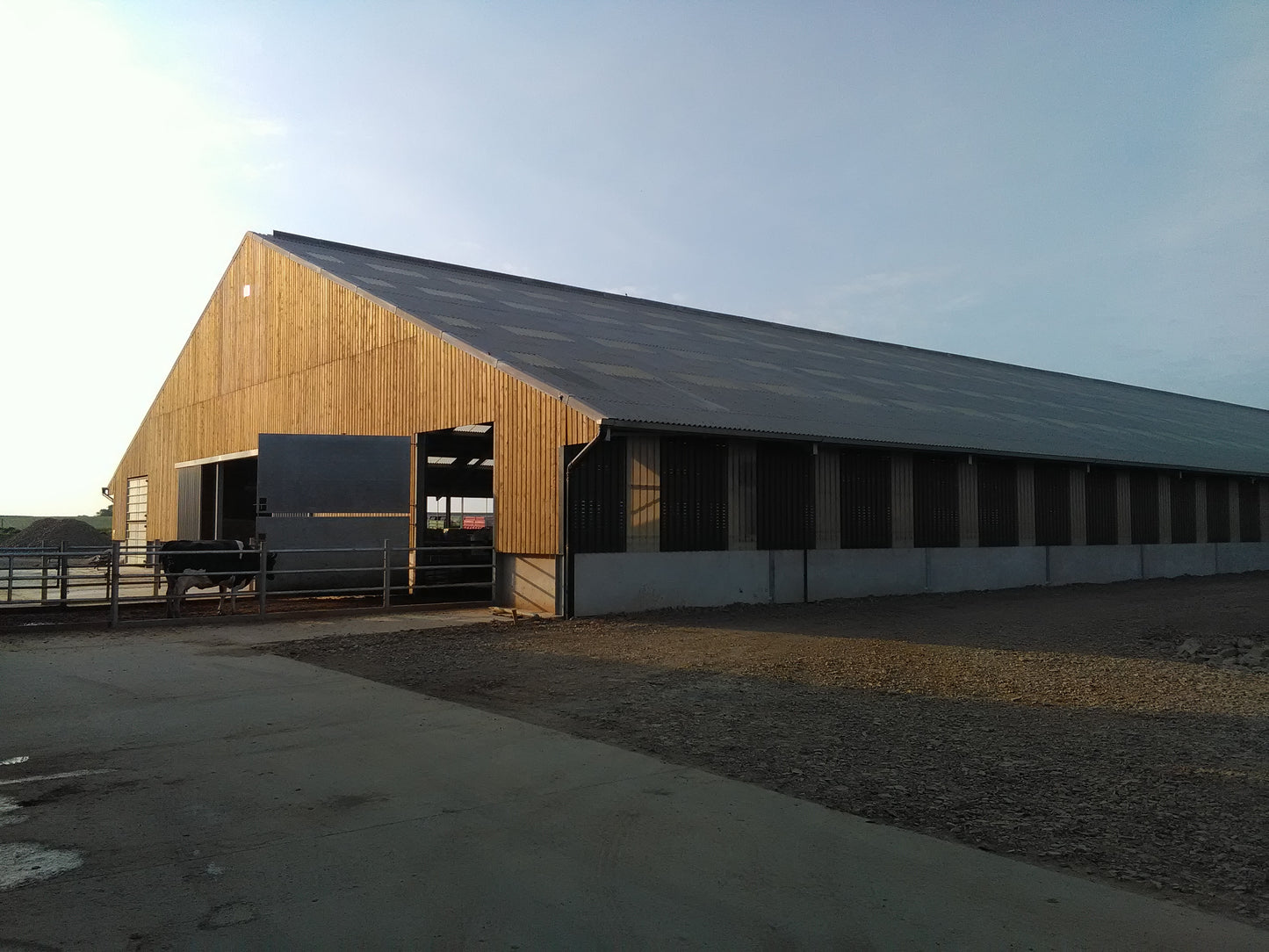

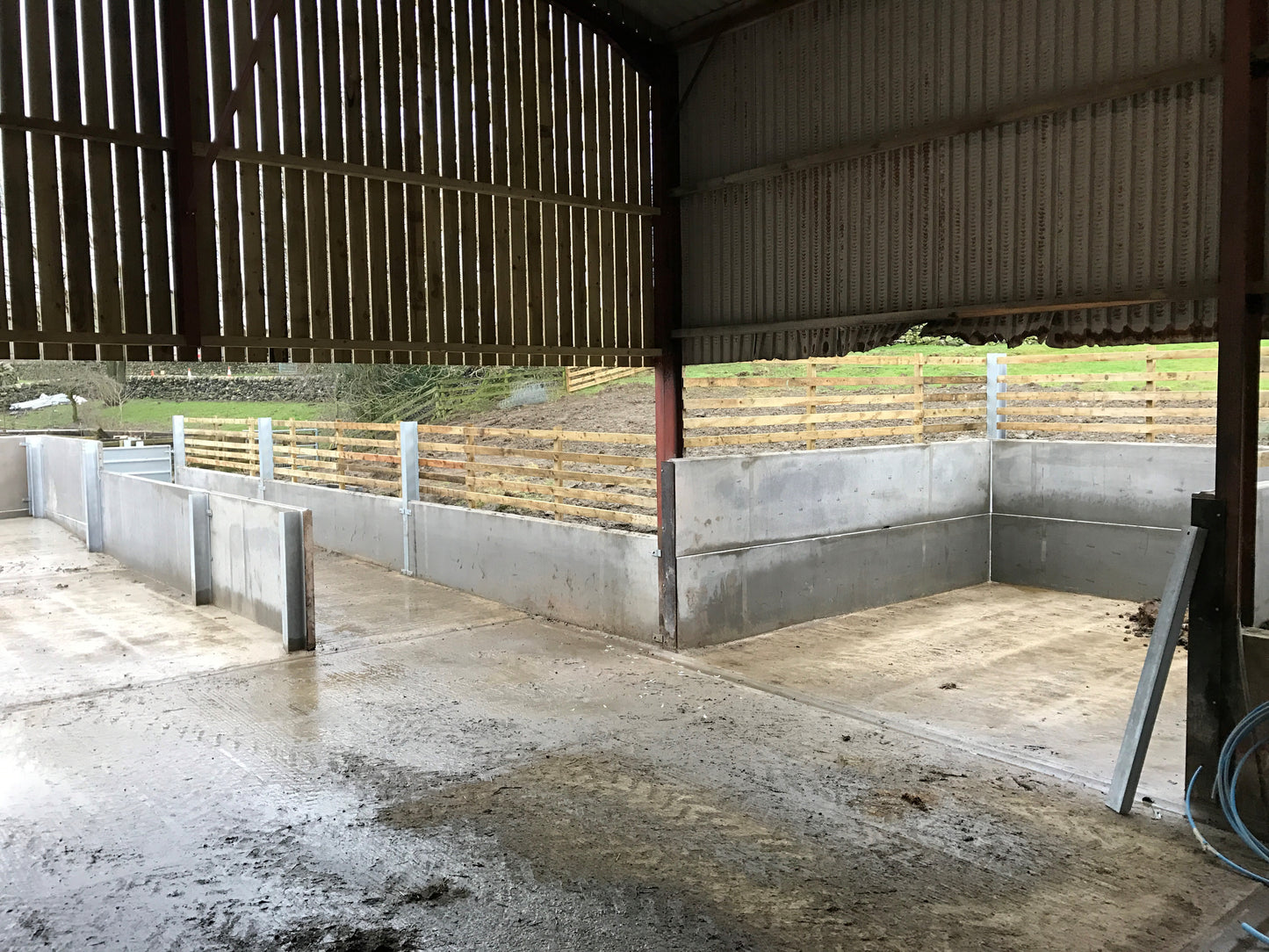

- 90mm Thick Panels - suitable for livestock buildings
- 140mm Thick Retaining Panels - best suited to grain and silage buildings

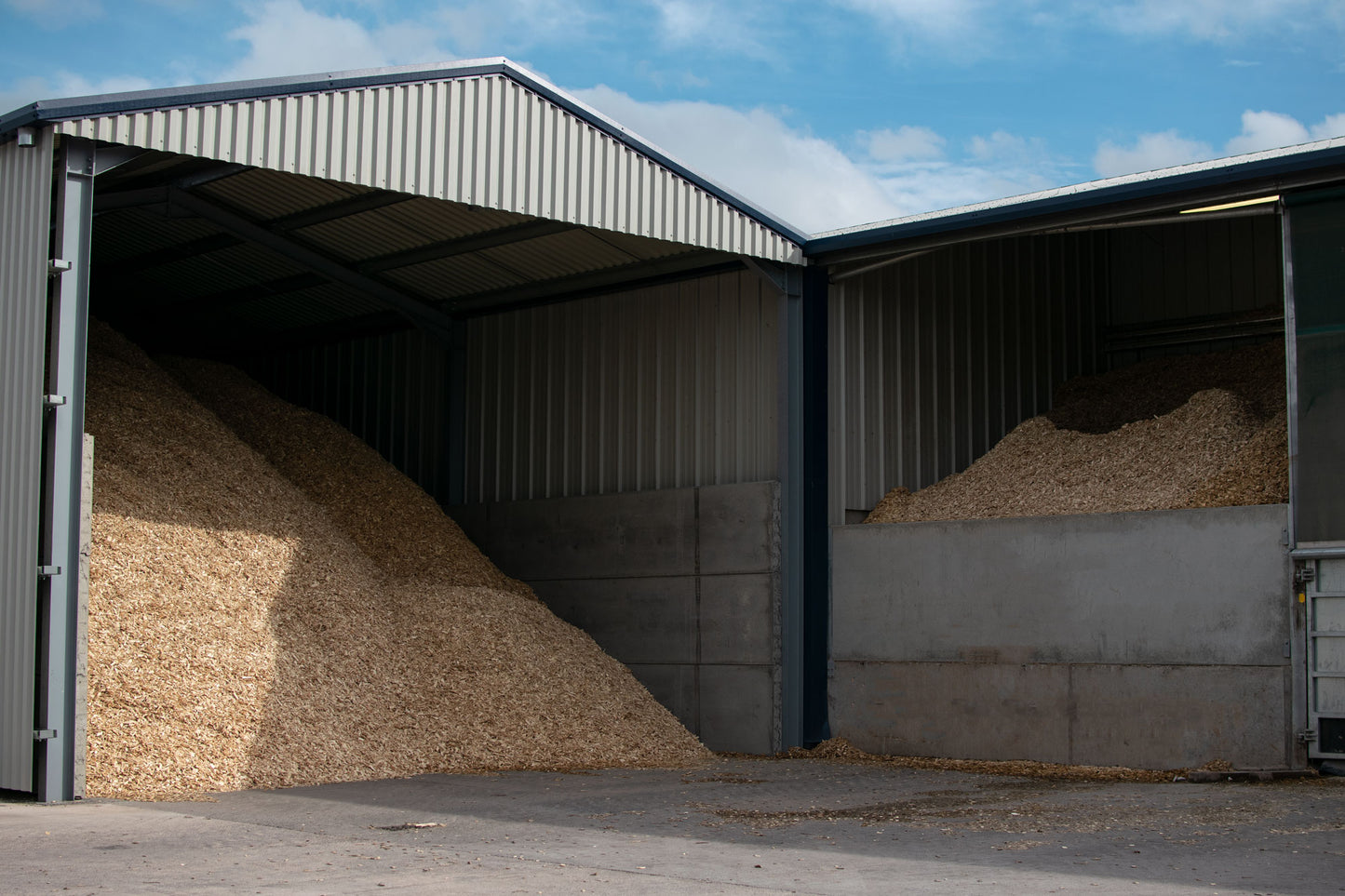

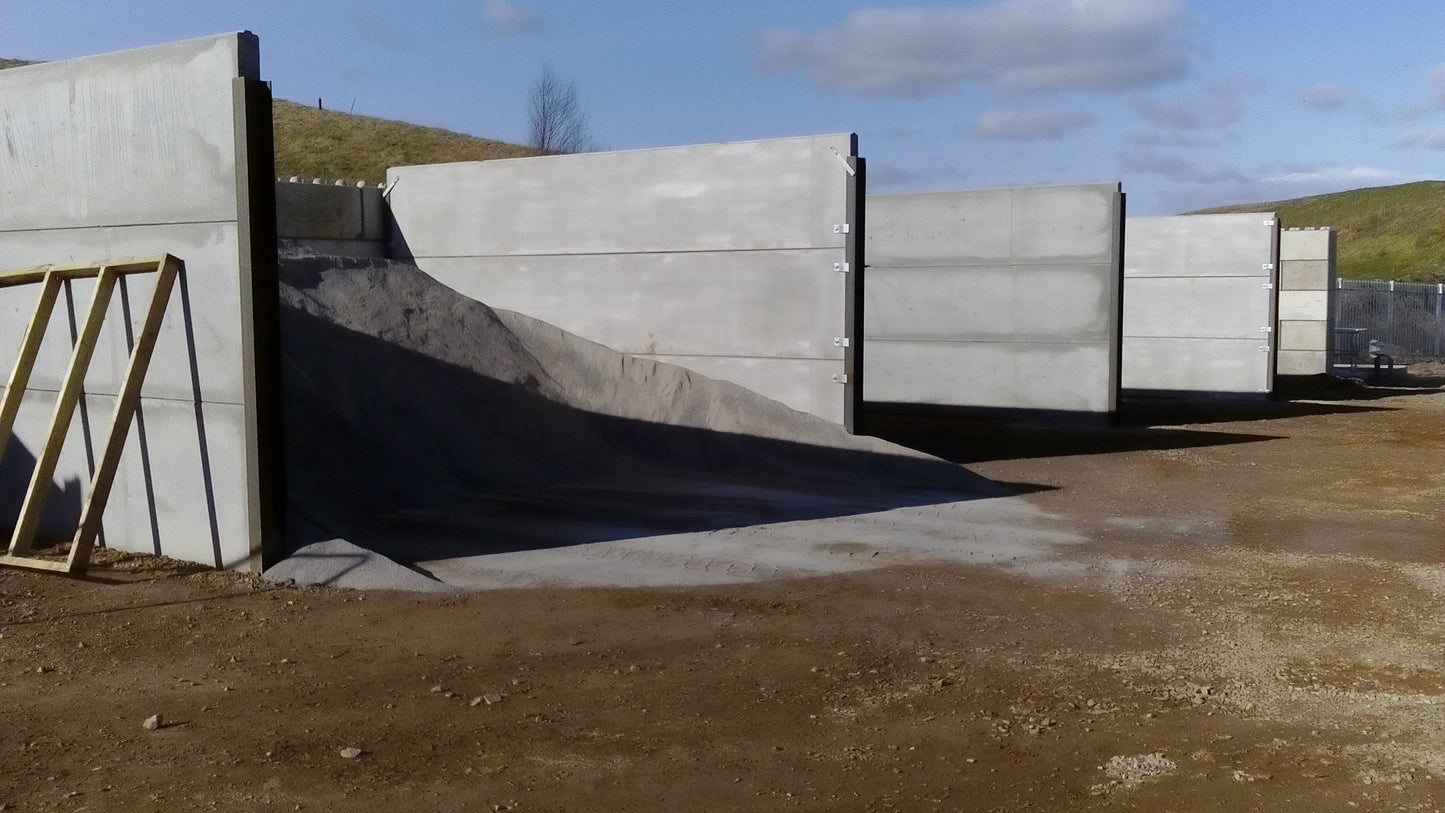

- 180mm Thick Retaining Panels - offering additional options for aggregate storage and industrial buildings

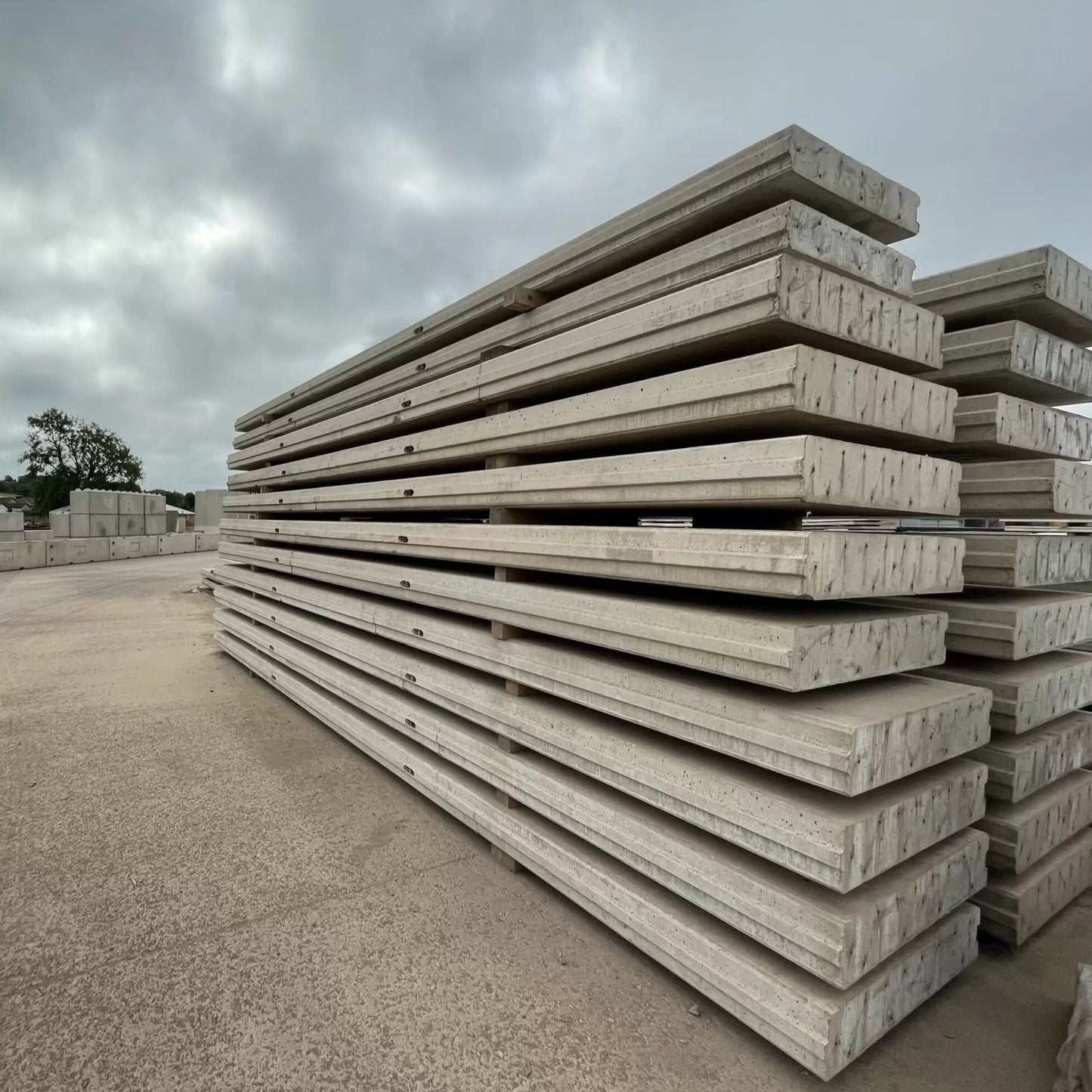

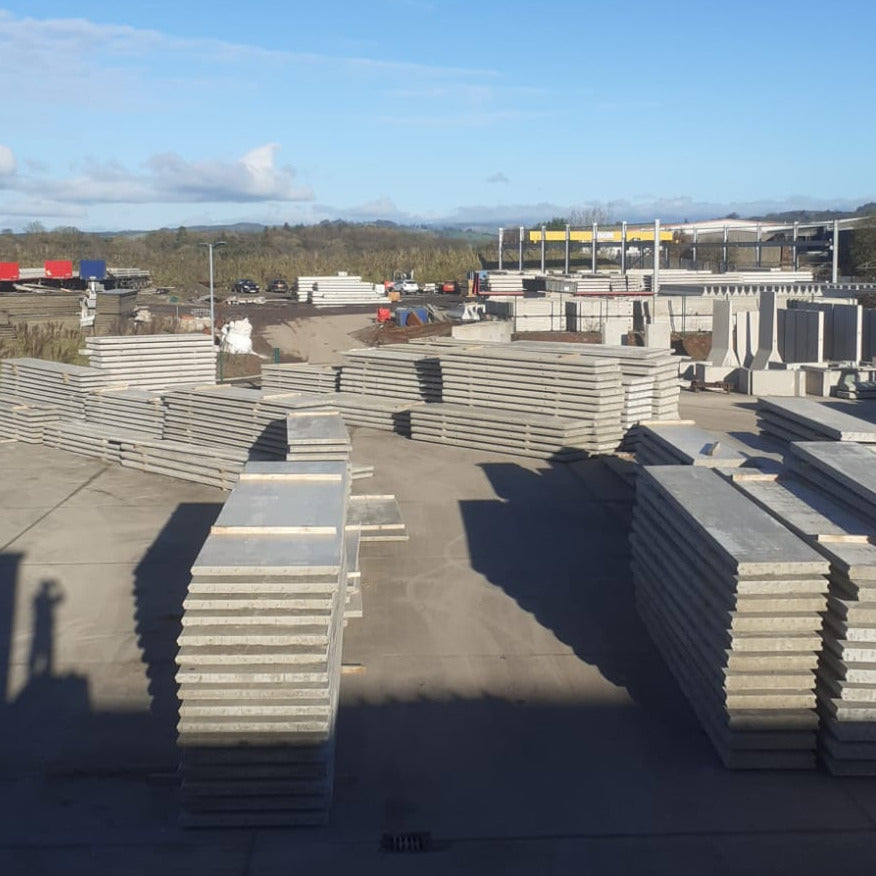

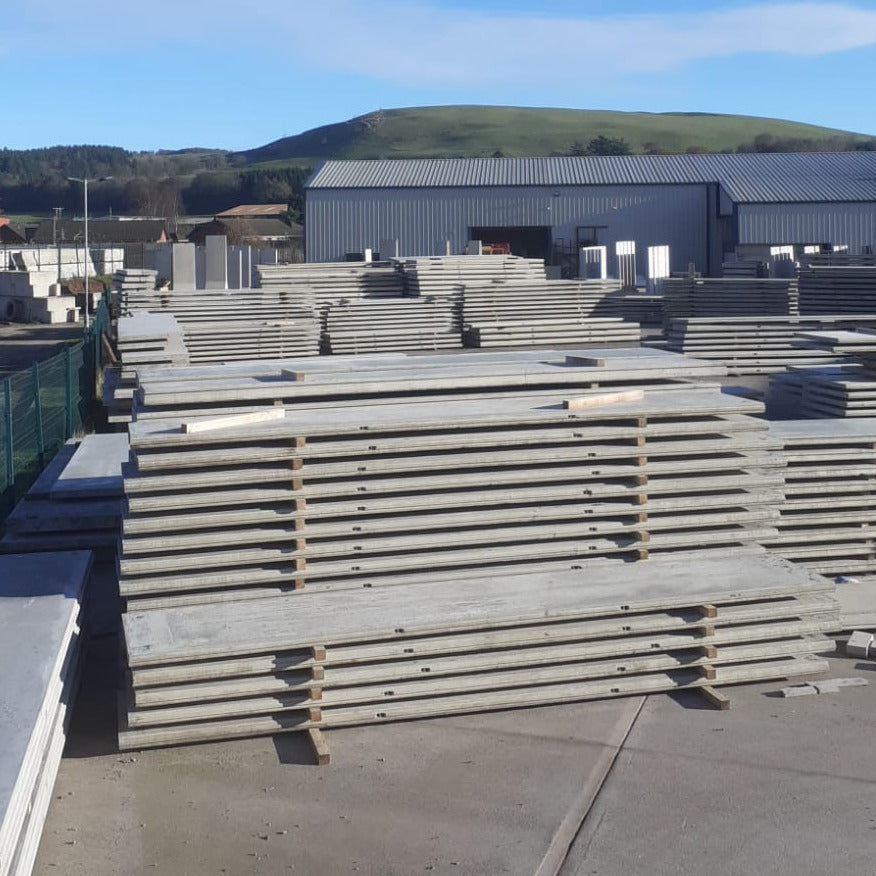

Available here are 4572mm (15') and 6096mm (20') long panels - we have these in stock, ready for collection from our Lockerbie Yard, or for UK-wide delivery.
We can supply any length up to 7m or 22’9”*, with heights from 500mm (20”) to 1500mm (4’11”) available - so if you are looking for a length not listed above, call our team today on 01576 204 963 to place your order.
*90mm thick panels available to a max of 6.1m long.
Dimensions
Dimensions
Thickness | Length | Height | Weight |
90mm 3½" | 4572mm 15' | 500mm 1'8" | 473kg |
90mm 3½" | 4572mm 15' | 600mm 2' | 568kg |
90mm 3½" | 4572mm 15' | 1000mm 3'3" | 946kg |
90mm 3½" | 4572mm 15' | 1200mm 3'11" | 1136kg |
90mm 3½" | 4572mm 15' | 1500mm 4'11" | 1420kg |
90mm 3½" | 6096mm 20' | 500mm 1'8" | 631kg |
90mm 3½" | 6096mm 20' | 600mm 2' | 757kg |
90mm 3½" | 6096mm 20' | 1000mm 3'3" | 1262kg |
90mm 3½" | 6096mm 20' | 1200mm 3'11" | 1514kg |
90mm 3½" | 6096mm 20' | 1500mm 4'11" | 1893kg |
140mm 5½" | 4572mm 15' | 500mm 1'8" | 736kg |
140mm 5½" | 4572mm 15' | 600mm 2' | 883kg |
140mm 5½" | 4572mm 15' | 1000mm 3'3" | 1472kg |
140mm 5½" | 4572mm 15' | 1200mm 3'11" | 1767kg |
140mm 5½" | 4572mm 15' | 1500mm 4'11" | 2208kg |
140mm 5½" | 6096mm 20' | 500mm 1'8" | 982kg |
140mm 5½" | 6096mm 20' | 600mm 2' | 1178kg |
140mm 5½" | 6096mm 20' | 1000mm 3'3" | 1963kg |
140mm 5½" | 6096mm 20' | 1200mm 3'11" | 2356kg |
140mm 5½" | 6096mm 20' | 1500mm 4'11" | 2944kg |
180mm 7" | 4572mm 15' | 1000mm 3'3" | 1893kg |
180mm 7" | 4572mm 15' | 1200mm 3'11" | 2271kg |
180mm 7" | 4572mm 15' | 1500mm 4'11" | 2839kg |
180mm 7" | 6096mm 20' | 1000mm 3'3" | 2524kg |
180mm 7" | 6096mm 20' | 1200mm 3'11" | 3029kg |
180mm 7" | 6096mm 20' | 1500mm 4'11" | 3786kg |
Please note; the thickness tolerance is +/-10mm.
Shipping & Delivery
Shipping & Delivery
Due to their size and weight, these products are delivered by our own staff using our own vehicles.
After you place your order, our sales team will contact you to arrange the delivery suitable to your availability and access restrictions.
The delivery is priced by your distance from our yard in Dumfries and is calculated during your checkout.
Prices given during checkout are for an exclusive delivery to you; depending on the size of your order and your location, we may be able to offer you cheaper rates with a shared load delivery. Please contact our sales team on 01576 204 963 or by email at sales@farmfituk.com if you would like to enquire about this.
